Regulatory Compliance & Certifications
These certifications were obtained by the assembler of the InformaCast Reach Server, InformaCast Fusion Server and InformaCast Advanced Server, OnLogic and are attached for reference.

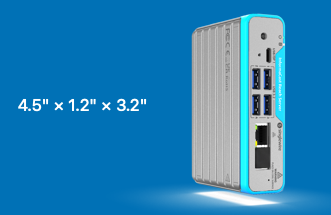

InformaCast Reach Server
- Computing Specifications:
- Intel® N250 Base: 1.3 GHz processor
- 8 GB RAM
- 128 GB SSD
- Front I/O:
- 1 x USB 3.2 Gen1 Type-C (DP 1.4, 5V/3A)
- 4 x USB 3.2 Gen1 Type-A
- 1 x 1 Gigabit Ethernet LAN port (non-power over Ethernet)
- 1 x Reset Button
- 1 x Power Button
- Rear I/O:
- 1 x USB 3.2 Gen 1 Type-C (DP 1.4, 5V/3A)
- 1 x 3-pin Terminal Block with 12~24 V Input
- Physical Dimensions: 4.5″ L x 1.2″ W x 3.2″ H
- Weight: ~3 lbs.
- Operational temperature range: 0-40 °C
Note: Singlewire recommends installing InformaCast Server Appliance in an environment designed for computer equipment, such as a server room with air conditioning.

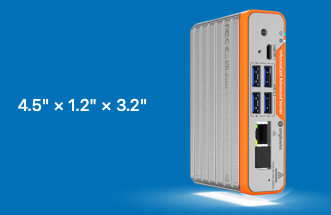

InformaCast Advanced Server v2
- Computing Specifications:
- Intel® N250 Base : 1.3 GHz processor
- 8 GB RAM
- 128 GB SSD
- Front I/O:
- 1 x USB 3.2 Gen1 Type-C (DP 1.4, 5V/3A)
- 4 x USB 3.2 Gen1 Type-A
- 1 x 1 Gigabit Ethernet LAN port (non-power over Ethernet)
- 1 x Reset Button
- 1 x Power Button
- Rear I/O:
- 1 x USB 3.2 Gen 1 Type-C (DP 1.4, 5V/3A)
- 1 x 3-pin Terminal Block with 12~24 V Input
- Physical Dimensions: 4.5″ L x 1.2″ W x 3.2″ H
- Weight: ~3 lbs.
- Operational temperature range: 0-40 °C
Note: Singlewire recommends installing InformaCast Server Appliance in an environment designed for computer equipment, such as a server room with air conditioning.
InformaCast Paging Gateway
Attached is the operating safety manual for the Singlewire InformaCast Paging Gateway appliance, IPTA-PG-APL2.
| IPTA-PG-APL2 | |
|---|---|
| UL Listing and Factory Inspection Service | Safety Manual |
- Physical Dimensions: 4.57″ L x 3.23″ W x 1.34″ H
- Weight: ~3 lbs.
- Power supply output: 18V / 15 W
- Power Adapter Included: AC/DC 12 V, 36 W – with Interchangeable Plug
- Operational temperature range and humidity: Temperature Range: 0 – 40°C, Humidity: 0% – 90%
- Warranty: 1 year
Note: Singlewire recommends installing the hardware paging gateway in an environment designed for computer equipment, such as a server room with air conditioning.
InformaCast Fusion Server
- Computing Specifications:
- Intel® Celeron N3160 1.6GHz quad-core processor
- 4 GB RAM
- 128 GB SSD
- Hardware Ports:
- DisplayPort (preferred console monitor) or HDMI
- Gigabit Ethernet LAN port (non-power over Ethernet)
- USB 3.0 or USB-C port (keyboard access)
- Physical Dimensions: 4.6″ L x 4.4″ W x 1.4″ H
- Weight: ~3 lbs.
- Power supply: Level 6 AC-DC adapter
- Operational temperature range: 0-40 °C
Note: Singlewire recommends installing InformaCast Server Appliance in an environment designed for computer equipment, such as a server room with air conditioning.
InformaCast Advanced Server
- Computing Specification
- Intel® Celeron N3160 1.6GHz quad-core processor
- 4 GB RAM
- 128 GB SSD
- Hardware Ports:
- DisplayPort (preferred console monitor) or HDMI
- Gigabit Ethernet LAN port (non-power over Ethernet)
- USB 3.0 or USB-C port (keyboard access)
- Physical Dimensions: 4.6″ L x 4.4″ W x 1.4″ H
- Weight: ~3 lbs.
- Power supply: Level 6 AC-DC adapter
- Operational temperature range: 0-40 °C
Note: Singlewire recommends installing InformaCast Server Appliance in an environment designed for computer equipment, such as a server room with air conditioning.
